CertoClav Classic

Chamber of electropolished 316L stainless steel, thermostat-controlled, nearly maintenance-free.

  • Laboratory waste
  • Culture media
CertoClav Classic laboratory autoclave
Volume
18 L
Temperature
125 °C / 140 °C
Chamber
Stainless steel 316L
Weight
8,8 kg

About this model

The indestructible CertoClav Classic, the further development of the stainless steel CertoClav EL, is extremely low-maintenance. A precision thermometer, a control valve and a precision manometer with drag indicator ensure exact processes and perfect results for all applications. The model is available in two versions, each with two temperature levels.

Full description from the catalogue

You can choose between the 125/140 °C and 115/121 °C models. The respective temperature level is set via the control valve in the lid. The valves cannot be interchanged as the thermostat of the appliance is matched and adjusted to the respective valve! The 2nd generation of our laboratory autoclaves comes with a new design, more functions and a newly developed touchscreen control. The steam sterilisers impress with their solid construction and are extremely low-maintenance. Venting is carried out using a flow process or fractional venting. The sterilisation chamber is made of corrosion-resistant, electropolished stainless steel (316L). This makes it extremely robust. A heater is screwed to the bottom of the chamber, but the heating elements are not directly in the water and therefore cannot calcify. This extends the service life of the autoclaves. Our laboratory autoclaves are ready to use in just a few simple steps. The sterilisation chamber can be opened and closed safely and easily with a single movement; simply turn and remove the lid. They are transportable and location-independent. Only a power supply is required. The water supply is a mixture of tap water and demineralised water. Our autoclaves are protected by a multiple safety system. It consists of a pressure relief valve, a pressure valve, a safety lid lock to prevent opening under pressure and a BI metal fuse to prevent the appliance from overheating. Important features: robust construction Temperature settings 125/140 °C Thermostat control simple operation Integrated timer venting in flow process Precision manometer with drag indicator Heating integrated in the base Ideal for the sterilisation of unwrapped solids without hollow bodies, liquids, bottles, instruments and plastics. Also suitable for culture media processing and waste sterilisation.

Intended loads

Laboratory waste

Contaminated cultures, plates and disposables, reliably inactivated.

Culture media

Agar and broth sterilised without boiling over or scorching.

Available versions

  • 18 L · 125/140 °CArt. 8510174
  • 18 L · 115/121 °CArt. 8510184

Prices on request. Your local dealer handles installation and the annual inspection.

What goes into the chamber.

Examples from the round wire basket that goes into this chamber.

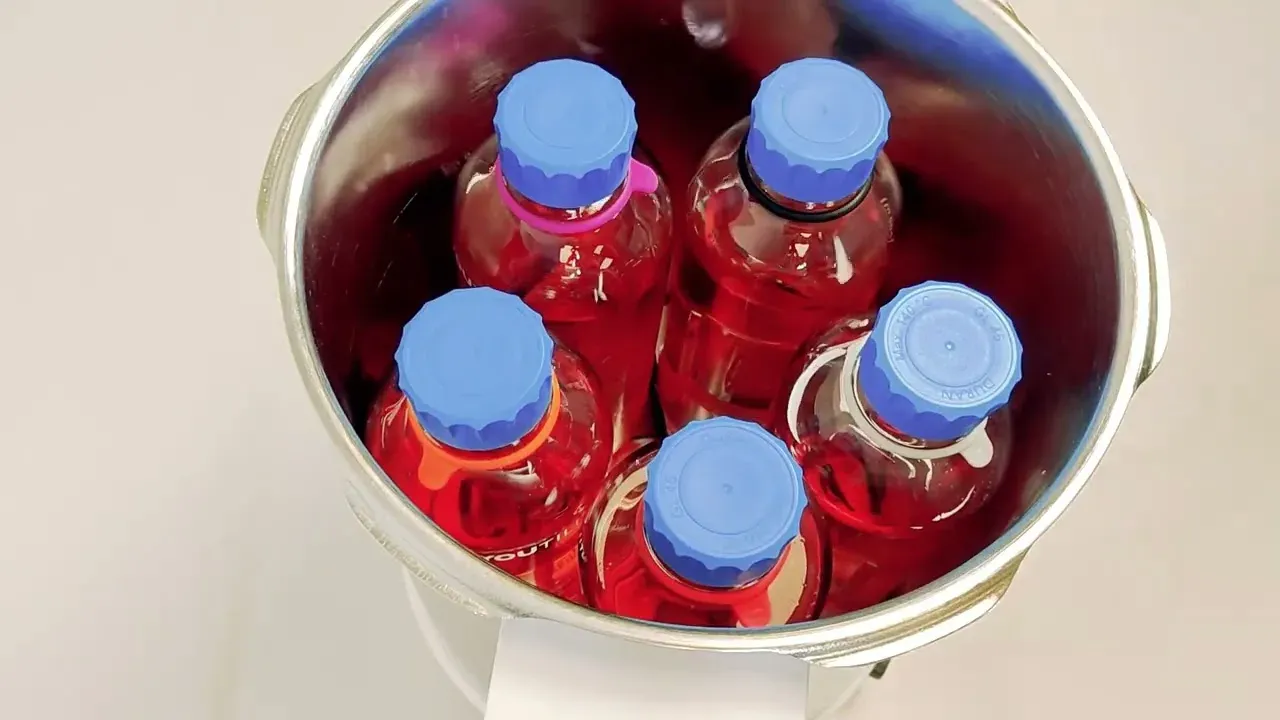

  • Culture media in bottles

    Culture media in bottles

  • Plastics and rubber

    Plastics and rubber

  • Organic materials

    Organic materials

  • Laboratory waste in disposal bags

    Laboratory waste in disposal bags

    Waste in bags needs a long hold. One hour is the recommendation here. A vacuum autoclave does the same load in four minutes.

  • Contaminated cultures and disposables

    Contaminated cultures and disposables

Sealed bottles

  • Crimped or tightly closed glass bottles up to 40 ml: every autoclave.
  • Above 40 ml, support pressure is required.
  • Plastic bottles, closed or crimped, always need support pressure, whatever the volume.
  • Only the VacPro 45 L offers support pressure (ordering option 8500613).

What this model is released for

Straight from the CertoClav catalogue and price list. If something is not listed here, it is not listed there either. Ask us rather than assume.

Sterilisation of

  • Unwrapped solids without hollow bodies
  • Liquids
  • Bottles
  • Instruments
  • Plastics

Preparation of

  • Culture media and agar

Waste disposal

  • Sterilisation of waste
  • Waste in disposal bags

Function

  • Two temperature stages

Equipment and connection

  • Standalone, no plumbing needed
  • Single-phase socket, no three-phase supply

CE marked. Conforms to 2014/35/EU, 2014/30/EU, 2011/65/EU.

Technical data

Chamber volume
18 L
Chamber diameter
26 cm
Chamber depth
35 cm
Chamber material
Stainless steel 316L
Max. operating pressure
2.7 bar
Temperature
125 °C / 140 °C
Heating power
1300 W
Electrical supply
230 V, 50/60 Hz
Net weight
8,8 kg
Dimensions (W × D × H)
44.5 × 30 × 60.5 cm
Orientation
Vertical, top loading
Fractionated vacuum
No
Flexible media probe
No
Drying phase
No
Interfaces
:
Country of origin
Austria

Figures apply to article 8510174. Other versions may differ.

Loading capacity

How many laboratory bottles fit in one cycle, and which carriers the chamber takes, measured by CertoClav with DURAN® bottles.

Stainless steel series 18 L

Articles 8510184, 8510174, 8510175, 8510176

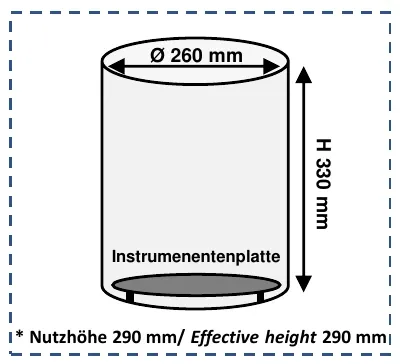

Chamber Ø
260 mm
Chamber height
330 mm
Effective height
290 mm
  • Chamber

    Chamber

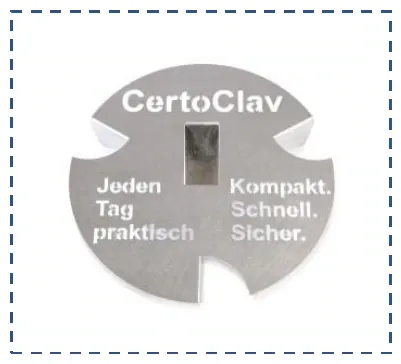

  • Instrument tray

    Instrument trayArt. 1300155

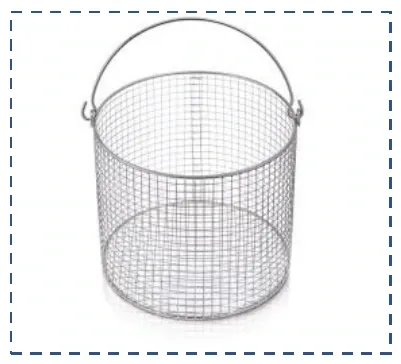

  • Wire basket

    Wire basketArt. 1300149

Load carriers

ItemArticleHeightØQty
Instrument tray1300155412501
Wire basket13001492502501

Dimensions in mm.

Laboratory bottles per load

BottleVolumeHeightØBottles
DURAN® Original GL 452000 ml2651361
DURAN® GLS 802000 ml2481361
DURAN® Original GL 451000 ml2301014
DURAN® GLS 801000 ml2181014
DURAN® Original GL 45500 ml181845
DURAN® Youtility500 ml193785
DURAN® GLS 80500 ml1481014
DURAN® Original GL 45250 ml143709
DURAN® Youtility250 ml158669
DURAN® GLS 80250 ml105954
DURAN® Youtility125 ml1245512
DURAN® Original GL 45100 ml1055612

Source: CertoClav loading capacity sheet, 2022-02. DURAN® is a trademark of DWK Life Sciences.

The original sheet as PDF: Loading capacity: Stainless steel, vertical

CertoClav Classic steam steriliseren

See it run

The video opens at YouTube only when you press play. Nothing is loaded from there before that.

Is the CertoClav Classic the right size for your load?

Send us your typical batch: vessel type, volume, frequency. We will confirm it or point you to the model that fits better.
