CertoClav Connect
Fully automatic, with a 7-inch CertoTouch screen that explains every step on video.
- Laboratory waste
- Culture media
About this model
Fully automatic laboratory autoclave with 7 inch high-res touch screen and intuitive user interface. All user tasks are explained with videos on the machine. Virtually no training requirements for new users.
Full description from the catalogueShow less
Easy compliance with GLP documentation requirements possible via CertoCloud, where all user information and cycle data is safely stored for 10 years and can be accessed from any web browser. 6 month free Certocloud trial period included with purchase. Integration in laboratory data management systems possible. Individual programs can be designed directly on the screen. If the unit is connected to the Internet via WLAN, an secure connection to CertoCloud is established. All sterilisation protocols can then be accessed via any web browser. The platform synchs all programms created and they can be disseminated to multiple CertoClav Connect units from one account. A wide range of applications can be addressed: Sterilisation, culture media preparation, materials testing (ICP-TM 610, HAST, GLB-AL 631) Important features: fully automatic Automatic venting in fractional flow process Electric exhaust vapour valve Flexible media sensor Time and temperature individually editable Ethernet, LAN, WiFi 7’ touchscreen with video assistant Cloud connection Heating integrated in the floor Electronic safety lock PT100 temperature sensor - for autoclaving liquids
Intended loads
Laboratory waste
Contaminated cultures, plates and disposables, reliably inactivated.
Culture media
Agar and broth sterilised without boiling over or scorching.
Available versions
- 18 L · fully automaticArt. 8510176
Prices on request. Your local dealer handles installation and the annual inspection.
What goes into the chamber.
Examples from the round wire basket that goes into this chamber.

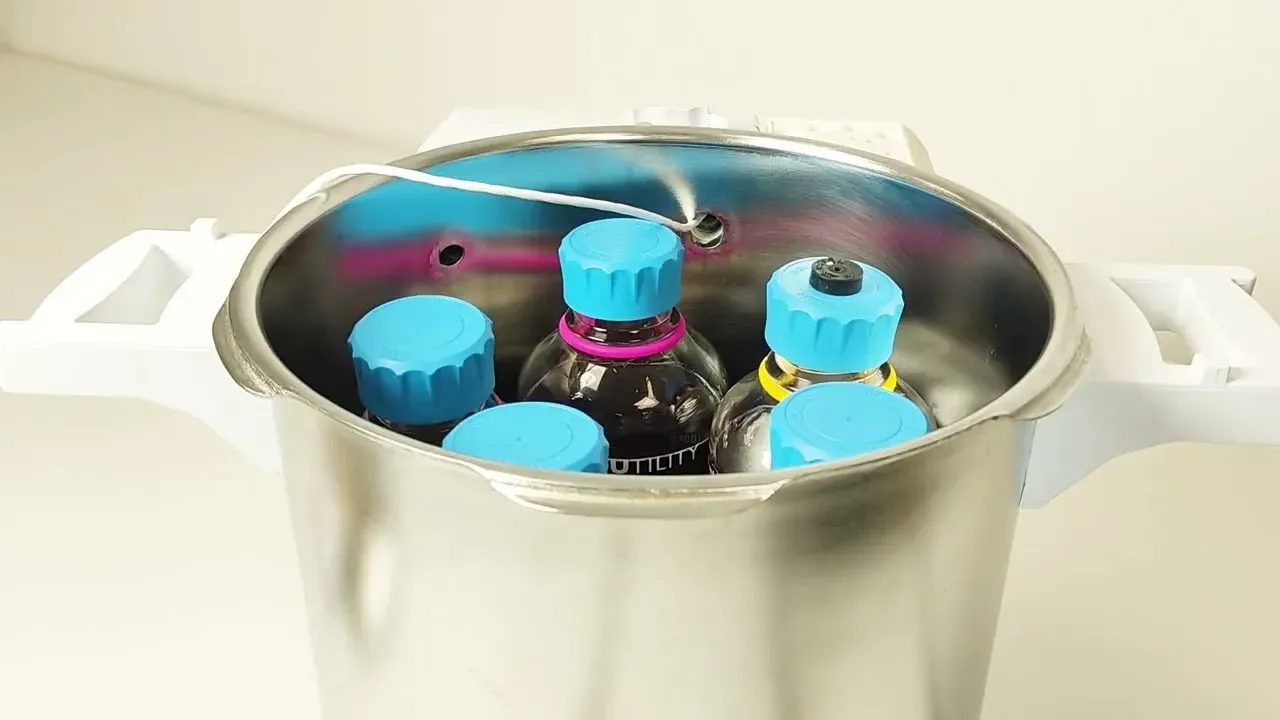

Culture media in bottles
Plastics and rubber
Organic materials
Laboratory waste in disposal bags
Waste in bags needs a long hold. One hour is the recommendation here. A vacuum autoclave does the same load in four minutes.
Contaminated cultures and disposables
Material and resistance testing
H.A.S.T stress test
Holding times of up to three months, what the H.A.S.T test needs.
Sealed bottles
- Crimped or tightly closed glass bottles up to 40 ml: every autoclave.
- Above 40 ml, support pressure is required.
- Plastic bottles, closed or crimped, always need support pressure, whatever the volume.
- Only the VacPro 45 L offers support pressure (ordering option 8500613).
Documents
Two years guarantee on every device, on top of the statutory warranty, conditions in the terms.
Datasheet · EN
Technical datasheet
All figures on this page, the release matrix and accessories on one A4 sheet.
Catalogue page · DE
Page from the 2026 catalogue
The official catalogue entry with photography and delivery scope.
Web
Printable datasheet
The same sheet as a page, for printing straight from the browser.
Loading capacity · DE/EN
Loading capacity sheet
Chamber, carriers and how many DURAN® bottles fit per cycle.
Manuals and declarations of conformity: on request, per serial number.
What this model is released for
Straight from the CertoClav catalogue and price list. If something is not listed here, it is not listed there either. Ask us rather than assume.
Sterilisation of
- Unwrapped solids without hollow bodies
- Liquids
- Bottles
- Instruments
- Plastics
- Rubber (105 °C)
Preparation of
- Culture media and agar
Waste disposal
- Sterilisation of waste
- Waste in disposal bags
Testing and cycles
- Material testing
- Long cycles, up to 7 days
Function
- Digital documentation
- Programmable
- Touchscreen
- CertoCloud
Equipment and connection
- Standalone, no plumbing needed
- Single-phase socket, no three-phase supply
CE marked. Conforms to 2014/35/EU, 2014/30/EU, 2011/65/EU.
Technical data
- Chamber volume
- 18 L
- Chamber diameter
- 26 cm
- Chamber depth
- 35 cm
- Chamber material
- Stainless steel 316L
- Max. operating pressure
- 2.7 bar
- Temperature
- 20 – 140 °C, adjustable
- Heating power
- 1300 W
- Electrical supply
- 230 V, 50/60 Hz
- Net weight
- 16 kg
- Dimensions (W × D × H)
- 44 × 38 × 54 cm
- Orientation
- Vertical, top loading
- Fractionated vacuum
- No
- Flexible media probe
- Yes
- Drying phase
- No
- Interfaces
- WiFi, LAN, USB, CertoCloud
- Country of origin
- Austria
Figures apply to article 8510176. Other versions may differ.
Loading capacity
How many laboratory bottles fit in one cycle, and which carriers the chamber takes, measured by CertoClav with DURAN® bottles.
Stainless steel series 18 L
Articles 8510184, 8510174, 8510175, 8510176
- Chamber Ø
- 260 mm
- Chamber height
- 330 mm
- Effective height
- 290 mm
Chamber
Instrument trayArt. 1300155
Wire basketArt. 1300149
Load carriers
| Item | Article | Height | Ø | Qty |
|---|---|---|---|---|
| Instrument tray | 1300155 | 41 | 250 | 1 |
| Wire basket | 1300149 | 250 | 250 | 1 |
Dimensions in mm.
Laboratory bottles per load
| Bottle | Volume | Height | Ø | Bottles |
|---|---|---|---|---|
| DURAN® Original GL 45 | 2000 ml | 265 | 136 | 1 |
| DURAN® GLS 80 | 2000 ml | 248 | 136 | 1 |
| DURAN® Original GL 45 | 1000 ml | 230 | 101 | 4 |
| DURAN® GLS 80 | 1000 ml | 218 | 101 | 4 |
| DURAN® Original GL 45 | 500 ml | 181 | 84 | 5 |
| DURAN® Youtility | 500 ml | 193 | 78 | 5 |
| DURAN® GLS 80 | 500 ml | 148 | 101 | 4 |
| DURAN® Original GL 45 | 250 ml | 143 | 70 | 9 |
| DURAN® Youtility | 250 ml | 158 | 66 | 9 |
| DURAN® GLS 80 | 250 ml | 105 | 95 | 4 |
| DURAN® Youtility | 125 ml | 124 | 55 | 12 |
| DURAN® Original GL 45 | 100 ml | 105 | 56 | 12 |
Source: CertoClav loading capacity sheet, 2022-02. DURAN® is a trademark of DWK Life Sciences.
The original sheet as PDF: Loading capacity: Stainless steel, vertical
Accessories
Parts listed for this model in the current catalogue.
Instrument plate with feet1252203The stable instrument plates with three feet and minimum water level indicator can also be used as a base plat
Service set 21310186Set gaskets for the models Classic, MultiControl 2 and Connect
Wire basket, Ø 25 cm, with handle1300149The wire basket is suitable for lifting autoclave items such as solids, waste in bags, instruments, bottles, l
Media probe1300185Media sensor for measuring temperature inside the autoclaving goods, especially in liquids, to ensure that the
CertoCloud Premium licence8500212The CertoCloud is a browser-based management software for our autoclaves. Unlocks the premium functions of the
Water distiller8500482High-quality, clean and demineralised water is particularly important for autoclaving. Poor water quality lead
