CertoClav MultiControl

A PT100 probe and a free programme: one minute to thirty days, room temperature to 140 °C.

Laboratory waste
Culture media

CertoClav MultiControl laboratory autoclave

Volume

Temperature

20 – 140 °C, adjustable

Chamber

Aluminium 3103

Weight

6,6 kg

About this model

The CertoClav MultiControl is a PT100 sensor-controlled laboratory autoclave. It is operated via a control unit. With this control unit you can customize the programs of the autoclave to your requirements.

Full description from the catalogue

The possible settings range from 1 minute to 30 days and from room temperature to 140 °C. This simplifies and accelerates the work process in the laboratory and, at the same time, offers a versatile range of applications. The control unit is equipped with a USB and a printer port (RS232) for the transfer or printout of sterilization protocols. The automated process control saves valuable employee time and the automated error detection validates the sterilization result. A software, recording the process data via USB, is included as a basic version. Without connecting a PC, the control unit can only be used to set programs that include just one time and one temperature step. For programs that include several time and temperature steps, the PC software professional version is required. Ideal for extended / long-term cycles and material tests like GSB AL 631, HAST Test, Pressure Cooker Test und IPC-TM 650, as well as culture media preparation, sterilization of waste, sterilization of biological hazardous substances (S2), unpackaged solids without hollow bodies, liquids, bottles, instruments, synthetic materials, and rubber. Key features microprocessor-controlled automatic venting by fractional flow procedure electronic process control PT100 temperature sensor time and temperature individually editable control unit with LCD display RS232 & USB port heating integrated in the base Also available as a SET with a wire basket, made of stainless steel, for convenient handling of autoclaving goods.

Intended loads

Laboratory waste

Contaminated cultures, plates and disposables, reliably inactivated.

Culture media

Agar and broth sterilised without boiling over or scorching.

Available versions

12 L · programmableArt. 8502312A
12 L · programmable · set with wire basketArt. 8502412

Prices on request. Your local dealer handles installation and the annual inspection.

What goes into the chamber.

Examples from the round wire basket that goes into this chamber.

Culture media in bottles
Plastics and rubber
Organic materials
Laboratory waste from the S2 area
Laboratory waste in disposal bags
Waste in bags needs a long hold. One hour is the recommendation here. A vacuum autoclave does the same load in four minutes.
Contaminated cultures and disposables
Material and resistance testing
H.A.S.T stress test

Sealed bottles

Crimped or tightly closed glass bottles up to 40 ml: every autoclave.
Above 40 ml, support pressure is required.
Plastic bottles, closed or crimped, always need support pressure, whatever the volume.
Only the VacPro 45 L offers support pressure (ordering option 8500613).

Documents

Two years guarantee on every device, on top of the statutory warranty, conditions in the terms.

Datasheet · EN

Technical datasheet

All figures on this page, the release matrix and accessories on one A4 sheet.

Catalogue page · DE

Page from the 2026 catalogue

The official catalogue entry with photography and delivery scope.

Web

Printable datasheet

The same sheet as a page, for printing straight from the browser.

Loading capacity · DE/EN

Loading capacity sheet

Chamber, carriers and how many DURAN® bottles fit per cycle.

Manuals and declarations of conformity: on request, per serial number.

What this model is released for

Straight from the CertoClav catalogue and price list. If something is not listed here, it is not listed there either. Ask us rather than assume.

Sterilisation of

Unwrapped solids without hollow bodies
Liquids
Bottles
Instruments
Plastics
Rubber (105 °C)

Preparation of

Culture media and agar

Waste disposal

Sterilisation of waste
Waste in disposal bags
Biological hazardous material (S2)

Testing and cycles

Material testing
Long cycles, up to 7 days

Function

Digital documentation
Programmable

Equipment and connection

Standalone, no plumbing needed
Single-phase socket, no three-phase supply

CE marked. Conforms to 2014/35/EU, 2014/30/EU, 2011/65/EU.

Technical data

Chamber volume: 12 L
Chamber diameter: 24 cm
Chamber depth: 26 cm
Chamber material: Aluminium 3103
Max. operating pressure: 2.7 bar
Temperature: 20 – 140 °C, adjustable
Heating power: 1900 W
Electrical supply: 230 V, 50/60 Hz
Net weight: 6,6 kg
Dimensions (W × D × H): 39.5 × 27.5 × 48 cm
Orientation: Vertical, top loading
Fractionated vacuum: No
Flexible media probe: No
Drying phase: No
Interfaces: USB, RS232 printer port
Country of origin: Austria

Figures apply to article 8502312A. Other versions may differ.

Loading capacity

How many laboratory bottles fit in one cycle, and which carriers the chamber takes, measured by CertoClav with DURAN® bottles.

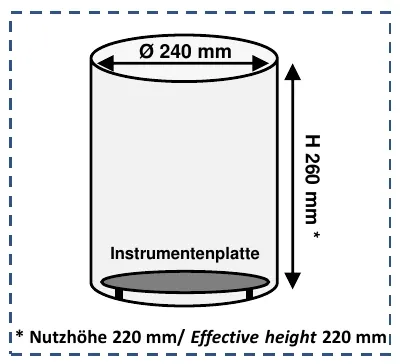

Aluminium series 12 L

Articles 8501312A, 8501312, 8502312A

Chamber Ø: 240 mm
Chamber height: 260 mm
Effective height: 220 mm

Chamber
Instrument trayArt. 1252203
Wire basketArt. 8583010

Load carriers

Item	Article	Height	Ø	Qty
Instrument tray	1252203	41	225	1
Wire basket	8583010	170	230	1

Dimensions in mm.

Laboratory bottles per load

Bottle	Volume	Height	Ø	Bottles
DURAN® Original GL 45	1000 ml	230	101	1*
DURAN® GLS 80	1000 ml	218	101	1*
DURAN® Original GL 45	500 ml	181	84	5
DURAN® Youtility	500 ml	193	78	5
DURAN® GLS 80	500 ml	148	101	3
DURAN® Original GL 45	250 ml	143	70	7
DURAN® Youtility	250 ml	158	66	8
DURAN® GLS 80	250 ml	105	95	4
DURAN® Youtility	125 ml	124	55	12
DURAN® Original GL 45	100 ml	105	56	12
