CertoClav VacPro 22
The same cycle, a 22-litre chamber.
- Laboratory waste
- Culture media
- Instruments
About this model
Thanks to the preheatable chamber, air cooling system and vacuum pump, the CertoClav Vacuum Pro series laboratory autoclaves enable a fast sterilisation cycle including drying of around 20 minutes. Thanks to the intelligent combination of vacuum, pressure and steam, the CertoClav Vacuum Pro 22 is suitable for solid bodies of all materials as well as hollow bodies. The additional media sensor also guarantees the complete sterilisation of liquids, such as culture media.
Full description from the catalogueShow less
The 7-inch, robust and high-resolution touchscreen, CertoTouch, offers intuitive operation. All operating steps are explained directly on the CertoTouch with videos. The autoclaves can be connected to the free CertoCloud. This offers fully automatic logging, remote maintenance and a notification function for PC, tablet or smartphone. Maintenance personnel can be notified by email or SMS. With the predefined standard programmes, repeat function, automatic documentation and short sterilisation cycles, the laboratory autoclave CertoClav Vacuum Pro 22 makes everyday laboratory work much easier. Ideal for material testing and quality control as well as for class B programme cycles. Also suitable for culture media preparation, sterilisation of waste and waste in destruction bags, unpackaged solids without hollow bodies, liquids, bottles, instruments, plastics, rubber, textiles, packaged instruments, porous materials. Important features: up to 50 user-definable programmes in 3 different types (solid, liquid, vacuum test) can be freely createdVacuum pump made in Germany Flexible sensor for temperature measurement of media Water quality sensor 7’ touchscreen with video assistant Automatic digital documentation RS232, RS485, USB Ethernet, LAN, Wi-Fi Cloud connection GMP/GLP compliant 21 CFR Part 11 compliant
Intended loads
Laboratory waste
Contaminated cultures, plates and disposables, reliably inactivated.
Culture media
Agar and broth sterilised without boiling over or scorching.
Instruments
Wrapped, hollow and porous loads, sterile and dry.
Available versions
- 22 L · vacuumArt. 8500489
Prices on request. Your local dealer handles installation and the annual inspection.
What goes into the chamber.
Examples from the rectangular basket and from the base plate.
In the rectangular basket
Instruments and metal goods
Culture media in bottles
Porous materials
Textiles
Plastics and rubber
Organic materials
Laboratory waste in disposal bags
Four minutes of holding time instead of an hour. That is what the vacuum pump is for.
Contaminated cultures and disposables
Material and resistance testing
Solutions in sealed amber glass bottles
Solutions in sealed plastic bottles
Wrapped instruments in sterilisation paper
On the stainless steel base plate
Culture media in one-litre bottles
Solutions in sealed amber glass bottles
Solutions in sealed plastic bottles
Sealed bottles
- Crimped or tightly closed glass bottles up to 40 ml: every autoclave.
- Above 40 ml, support pressure is required.
- Plastic bottles, closed or crimped, always need support pressure, whatever the volume.
- Only the VacPro 45 L offers support pressure (ordering option 8500613).
Documents
Two years guarantee on every device, on top of the statutory warranty, conditions in the terms.
Datasheet · EN
Technical datasheet
All figures on this page, the release matrix and accessories on one A4 sheet.
Catalogue page · DE
Page from the 2026 catalogue
The official catalogue entry with photography and delivery scope.
Web
Printable datasheet
The same sheet as a page, for printing straight from the browser.
Loading capacity · DE/EN
Loading capacity sheet
Chamber, carriers and how many DURAN® bottles fit per cycle.
Manuals and declarations of conformity: on request, per serial number.
What this model is released for
Straight from the CertoClav catalogue and price list. If something is not listed here, it is not listed there either. Ask us rather than assume.
Sterilisation of
- Unwrapped solids without hollow bodies
- Liquids
- Bottles
- Instruments
- Plastics
- Rubber (105 °C)
- Textiles
- Wrapped instruments
- Porous materials
- Hollow bodies type A and B to EN 13060
Preparation of
- Culture media and agar
Waste disposal
- Sterilisation of waste
- Waste in disposal bags
Testing and cycles
- Material testing
- Automatic cycle repetition
- Class B programme cycles
Function
- Digital documentation
- Programmable
- Touchscreen
- CertoCloud
Equipment and connection
- Standalone, no plumbing needed
- Single-phase socket, no three-phase supply
- Fixed water connection with automatic refillOrdering option, the 45 litre is a separate article (8500610W).
CE marked. Conforms to 2014/35/EU, 2014/30/EU, 2011/65/EU.
Technical data
- Chamber volume
- 22 L
- Chamber diameter
- 25 cm
- Chamber depth
- 45 cm
- Chamber material
- Stainless steel 304L
- Max. operating pressure
- 230 kPa
- Temperature
- 105 – 134 °C
- Heating power
- 2400 W
- Electrical supply
- 220 V, 50/60 Hz
- Net weight
- 55 kg
- Dimensions (W × D × H)
- 50 × 65 × 43 cm
- Orientation
- Horizontal, front loading
- Fractionated vacuum
- Yes
- Flexible media probe
- Yes
- Drying phase
- Yes
- Interfaces
- WiFi, LAN, USB, CertoCloud
- Country of origin
- Austria
Figures apply to article 8500489. Other versions may differ.
Loading capacity
How many laboratory bottles fit in one cycle, and which carriers the chamber takes, measured by CertoClav with DURAN® bottles.
Vac Pro 22
Articles 8500489

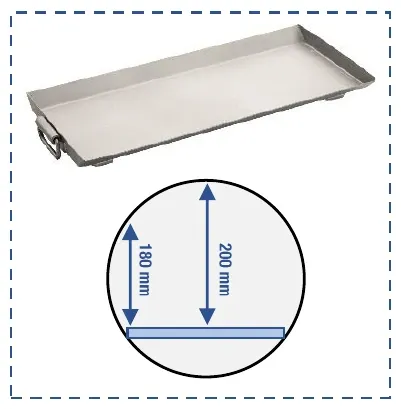

Drip tray / plate for bottlesArt. 1300767
Wire basketArt. 8500403
Tray setArt. 8500481
Load carriers
| Item | Article | W | H | L | Qty |
|---|---|---|---|---|---|
| Drip tray / plate for bottles | 1300767 | 166 | 10 | 405 | 1 |
| Wire basket | 8500403 | 170 | 170 | 410 | 1 |
| Tray set, tray | 8500481 | 170 | 50 | 430 | 2 |
| Tray set, tray | 8500481 | 220 | 50 | 430 | 1 |
Dimensions in mm.
Laboratory bottles per load
| Bottle | Volume | Height | Ø | Bottles |
|---|---|---|---|---|
| DURAN® Original GL 45 | 500 ml | 181 | 84 | 6 |
| DURAN® Youtility | 500 ml | 193 | 78 | 6 |
| DURAN® GLS 80 | 500 ml | 148 | 101 | 4 |
| DURAN® Original GL 45 | 250 ml | 143 | 70 | 10 |
| DURAN® Youtility | 250 ml | 158 | 66 | 10 |
| DURAN® GLS 80 | 250 ml | 105 | 95 | 4 |
| DURAN® Youtility | 125 ml | 124 | 55 | 14 |
| DURAN® Original GL 45 | 100 ml | 105 | 56 | 14 |
Source: CertoClav loading capacity sheet, 2021-03. DURAN® is a trademark of DWK Life Sciences.
The original sheet as PDF: Loading capacity: Horizontal, vacuum
Accessories
Parts listed for this model in the current catalogue.
Service set 38500495Service set 3 contains a door seal, a safety valve and a bacteria filter. The seal and the safety valve should
Protocol printer1300187Printer for sterilisation protocolls. Only for models Essential and MultiControl 2. Art. Nr. 13.001.54 if boug
Label printer8500502The external label printer is used to label and trace the sterilization items. The printer prints the expirati
Drip tray (VacPro 22)1300767The drip tray is used to prevent chamber contamination due to boiling over of liquids such as agar agar and as
Wire basket (VacPro 22)8500403The wire basket is suitable for lifting autoclave items such as solids, waste in bags, instruments, bottles, l
Tray set with five drawers8500481The tray set with 5 stainless steel drawers is suitable for culture media, instruments, material testing, etc.
Bacteria filter (VacPro 12, VacPro 22)1300705The bacteria filter should be changed every 300 cycles.
CertoCloud Premium licence8500212The CertoCloud is a browser-based management software for our autoclaves. Unlocks the premium functions of the
Water distiller8500482High-quality, clean and demineralised water is particularly important for autoclaving. Poor water quality lead
Barcode reader8500503The wired barcode reader enables quick access to all sterilisation protocols of the sterilisation items by sca
See it run
The video opens at YouTube only when you press play. Nothing is loaded from there before that.
Is the CertoClav VacPro 22 the right size for your load?
Send us your typical batch: vessel type, volume, frequency. We will confirm it or point you to the model that fits better.
