CertoClav MultiControl 2
The next generation of the MultiControl controller, in stainless steel.
- Laboratory waste
- Culture media
About this model
CertoClav MultiControl 2 is the next generation of the proven MultiControl autoclave controller. With MultiControl, the autoclave can be programmed freely. Standard sterilisation programms are pre installed.
Full description from the catalogueShow less
There is a USB connection and a RS232 printer port. PC Software for visualisation of process data is included. (Pro License is required to for programming of multi-step programms. Wide palette of application areas: Sterilisation, culture medium preparation, material testing (ICP-TM 610, HAST Test, GLB-AL 631). Long term cycles are possible without problems. Freely selectable temperature from room temperature up to 140° C (up to 2.7 bar / 39.2 psi gauge pressure). Automatic process cycle and independent malfunction detection. Progress indicator Applications: Compact instruments also simply packaged, liquids (culture mediums), bottles and equipment, refuse sterilisation. Materials testing (ICP-TM 610, HAST, GLB-AL 631). Long time cycles possible. Important features: microprocessor-controlled Electronic process control PT100 temperature sensor Time and temperature individually editable control unit with LCD display Automatic venting in fractional flow process RS232 connection, USB Heating integrated in the base
Intended loads
Laboratory waste
Contaminated cultures, plates and disposables, reliably inactivated.
Culture media
Agar and broth sterilised without boiling over or scorching.
Available versions
- 18 L · programmableArt. 8510175
Prices on request. Your local dealer handles installation and the annual inspection.
What goes into the chamber.
Examples from the round wire basket that goes into this chamber.

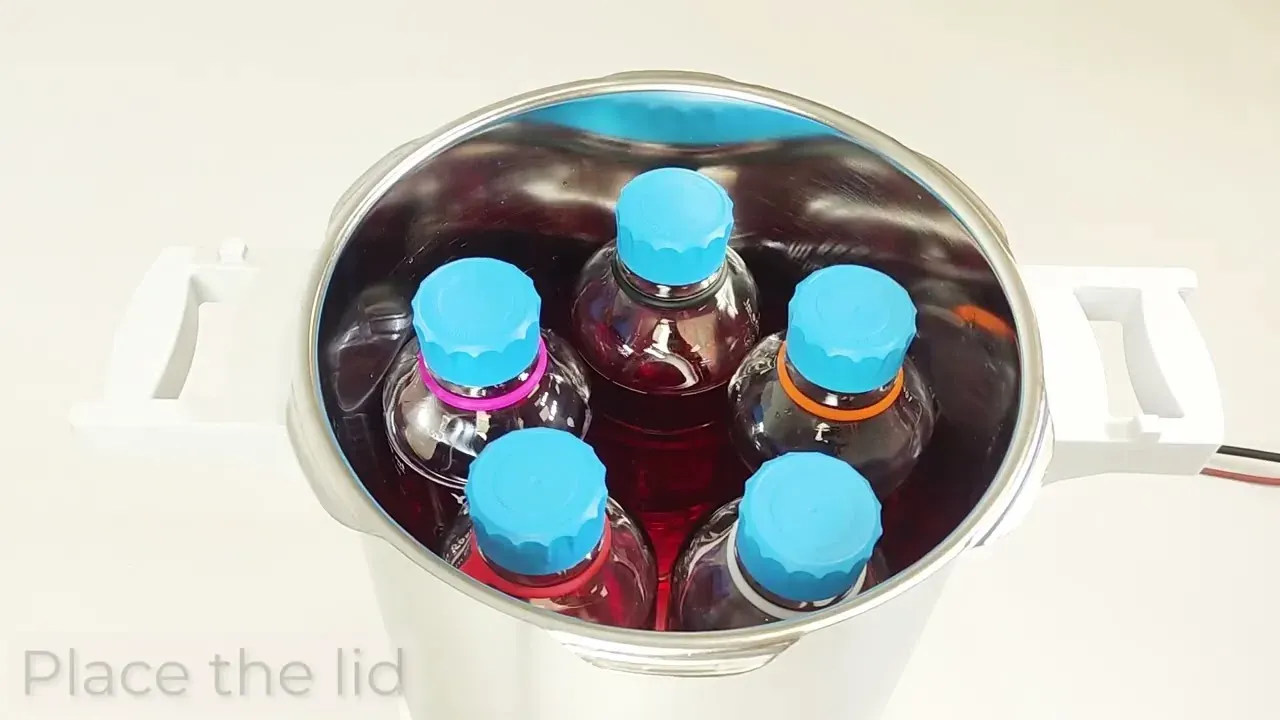

Culture media in bottles
Plastics and rubber
Organic materials
Laboratory waste from the S2 area
Laboratory waste in disposal bags
Waste in bags needs a long hold. One hour is the recommendation here. A vacuum autoclave does the same load in four minutes.
Contaminated cultures and disposables
Material and resistance testing
H.A.S.T stress test
Holding times of up to three months, what the H.A.S.T test needs.
Sealed bottles
- Crimped or tightly closed glass bottles up to 40 ml: every autoclave.
- Above 40 ml, support pressure is required.
- Plastic bottles, closed or crimped, always need support pressure, whatever the volume.
- Only the VacPro 45 L offers support pressure (ordering option 8500613).
Documents
Two years guarantee on every device, on top of the statutory warranty, conditions in the terms.
Datasheet · EN
Technical datasheet
All figures on this page, the release matrix and accessories on one A4 sheet.
Catalogue page · DE
Page from the 2026 catalogue
The official catalogue entry with photography and delivery scope.
Web
Printable datasheet
The same sheet as a page, for printing straight from the browser.
Loading capacity · DE/EN
Loading capacity sheet
Chamber, carriers and how many DURAN® bottles fit per cycle.
Manuals and declarations of conformity: on request, per serial number.
What this model is released for
Straight from the CertoClav catalogue and price list. If something is not listed here, it is not listed there either. Ask us rather than assume.
Sterilisation of
- Unwrapped solids without hollow bodies
- Liquids
- Bottles
- Instruments
- Plastics
- Rubber (105 °C)
Preparation of
- Culture media and agar
Waste disposal
- Sterilisation of waste
- Waste in disposal bags
- Biological hazardous material (S2)
Testing and cycles
- Material testing
- Long cycles, up to 7 days
Function
- Digital documentation
- Programmable
Equipment and connection
- Standalone, no plumbing needed
- Single-phase socket, no three-phase supply
CE marked. Conforms to 2014/35/EU, 2014/30/EU, 2011/65/EU.
Technical data
- Chamber volume
- 18 L
- Chamber diameter
- 26 cm
- Chamber depth
- 35 cm
- Chamber material
- Stainless steel 316L
- Max. operating pressure
- 2.7 bar
- Temperature
- 20 – 140 °C, adjustable
- Heating power
- 1300 W
- Electrical supply
- 230 V, 50/60 Hz
- Net weight
- 9,5 kg
- Dimensions (W × D × H)
- 44.5 × 30 × 53.5 cm
- Orientation
- Vertical, top loading
- Fractionated vacuum
- No
- Flexible media probe
- No
- Drying phase
- No
- Interfaces
- USB, RS232 printer port
- Country of origin
- Austria
Figures apply to article 8510175. Other versions may differ.
Loading capacity
How many laboratory bottles fit in one cycle, and which carriers the chamber takes, measured by CertoClav with DURAN® bottles.
Stainless steel series 18 L
Articles 8510184, 8510174, 8510175, 8510176
- Chamber Ø
- 260 mm
- Chamber height
- 330 mm
- Effective height
- 290 mm
Chamber
Instrument trayArt. 1300155
Wire basketArt. 1300149
Load carriers
| Item | Article | Height | Ø | Qty |
|---|---|---|---|---|
| Instrument tray | 1300155 | 41 | 250 | 1 |
| Wire basket | 1300149 | 250 | 250 | 1 |
Dimensions in mm.
Laboratory bottles per load
| Bottle | Volume | Height | Ø | Bottles |
|---|---|---|---|---|
| DURAN® Original GL 45 | 2000 ml | 265 | 136 | 1 |
| DURAN® GLS 80 | 2000 ml | 248 | 136 | 1 |
| DURAN® Original GL 45 | 1000 ml | 230 | 101 | 4 |
| DURAN® GLS 80 | 1000 ml | 218 | 101 | 4 |
| DURAN® Original GL 45 | 500 ml | 181 | 84 | 5 |
| DURAN® Youtility | 500 ml | 193 | 78 | 5 |
| DURAN® GLS 80 | 500 ml | 148 | 101 | 4 |
| DURAN® Original GL 45 | 250 ml | 143 | 70 | 9 |
| DURAN® Youtility | 250 ml | 158 | 66 | 9 |
| DURAN® GLS 80 | 250 ml | 105 | 95 | 4 |
| DURAN® Youtility | 125 ml | 124 | 55 | 12 |
| DURAN® Original GL 45 | 100 ml | 105 | 56 | 12 |
Source: CertoClav loading capacity sheet, 2022-02. DURAN® is a trademark of DWK Life Sciences.
The original sheet as PDF: Loading capacity: Stainless steel, vertical
Accessories
Parts listed for this model in the current catalogue.
Instrument plate with feet1252203The stable instrument plates with three feet and minimum water level indicator can also be used as a base plat
Service set 21310186Set gaskets for the models Classic, MultiControl 2 and Connect
Protocol printer1300187Printer for sterilisation protocolls. Only for models Essential and MultiControl 2. Art. Nr. 13.001.54 if boug
Wire basket, Ø 25 cm, with handle1300149The wire basket is suitable for lifting autoclave items such as solids, waste in bags, instruments, bottles, l
PC software, Pro licence8500210With the Pro Version of the MultiControl PC Software it is possible to programm multi-step cycles (time and te
Water distiller8500482High-quality, clean and demineralised water is particularly important for autoclaving. Poor water quality lead
Exhaust vapour container with filter and hose8582010The pre-assembled exhaust air filter consists of a plastic exhaust container, a heat-resistant exhaust hose an- Exhaust vapour container with hose8582020The plastic exhaust vapour container is used to collect the condensation water. The evaporation container has
Exhaust vapour hose8582016The vapour extraction hose is made of silicone and is supplied with 2 screw clamps. The hose is temperature-re
See it run
The video opens at YouTube only when you press play. Nothing is loaded from there before that.
Is the CertoClav MultiControl 2 the right size for your load?
Send us your typical batch: vessel type, volume, frequency. We will confirm it or point you to the model that fits better.
Ask for a dealer quote
