CertoClav Neo 45

Clinic capacity: a 61-centimetre chamber and trays half a metre long.

CertoAssist on-screen batch release with CertoSign

Ask for a dealer quoteTechnical data
CertoClav Neo 45 class B autoclave
List price, excl. VAT
€20,217
Chamber
45 L
Cycle time
~60 min
Capacity
on request
Class
B · EN 13060

Key figures and highlights

  • Class B to EN 13060
  • For wrapped and unwrapped instruments, textiles and hollow bodies.
  • 45 litre chamber (Ø 32 × 61 cm) with 3 × stainless steel, 51 × 22.6 × 1.7 cm.
  • CertoAssist: digital, paperless batch release with CertoSign.
  • Can be connected to your practice software (RS232).
  • External dimensions 84 × 64 × 56 cm · 120 kg.
  • Cycle time including drying approx. 60 minutes.
  • Test programmes on board: Vacuum test, Helix test, Bowie & Dick test.
  • CertoAssist terminal with a 7-inch touch display.
  • Batch release on the screen, signed with CertoSign.
  • Documentation through the terminal and via USB, on paper only if you want it.
  • Every cycle logged in full, start to finish.
  • Connections for a label printer and a barcode scanner.
  • Tray rack and a handle for taking trays out safely.
  • Delivery, installation and initial validation through your dealer.
  • 2 years, 3 years with a service contract

Fully digital documentation, service that turns up.

The CertoClav Neo 45 sterilises wrapped and unwrapped instruments, textiles and hollow bodies to EN 13060; conformity is assessed by the notified body TÜV SÜD. At its heart sits CertoAssist: paperless documentation with batch release on the screen, signed with CertoSign. Over LAN, WiFi and the link to your practice software the records travel by themselves to where you need them.

Behind every device stands the family-owned CertoClav Sterilizer GmbH, building sterilisers in Leonding since 1957. Delivery, installation and the initial validation are done on site by your specialist dealer, the same person you call when something needs looking at.

Made for Clinics and shared sterilisation rooms with a full reprocessing day and paperless release.

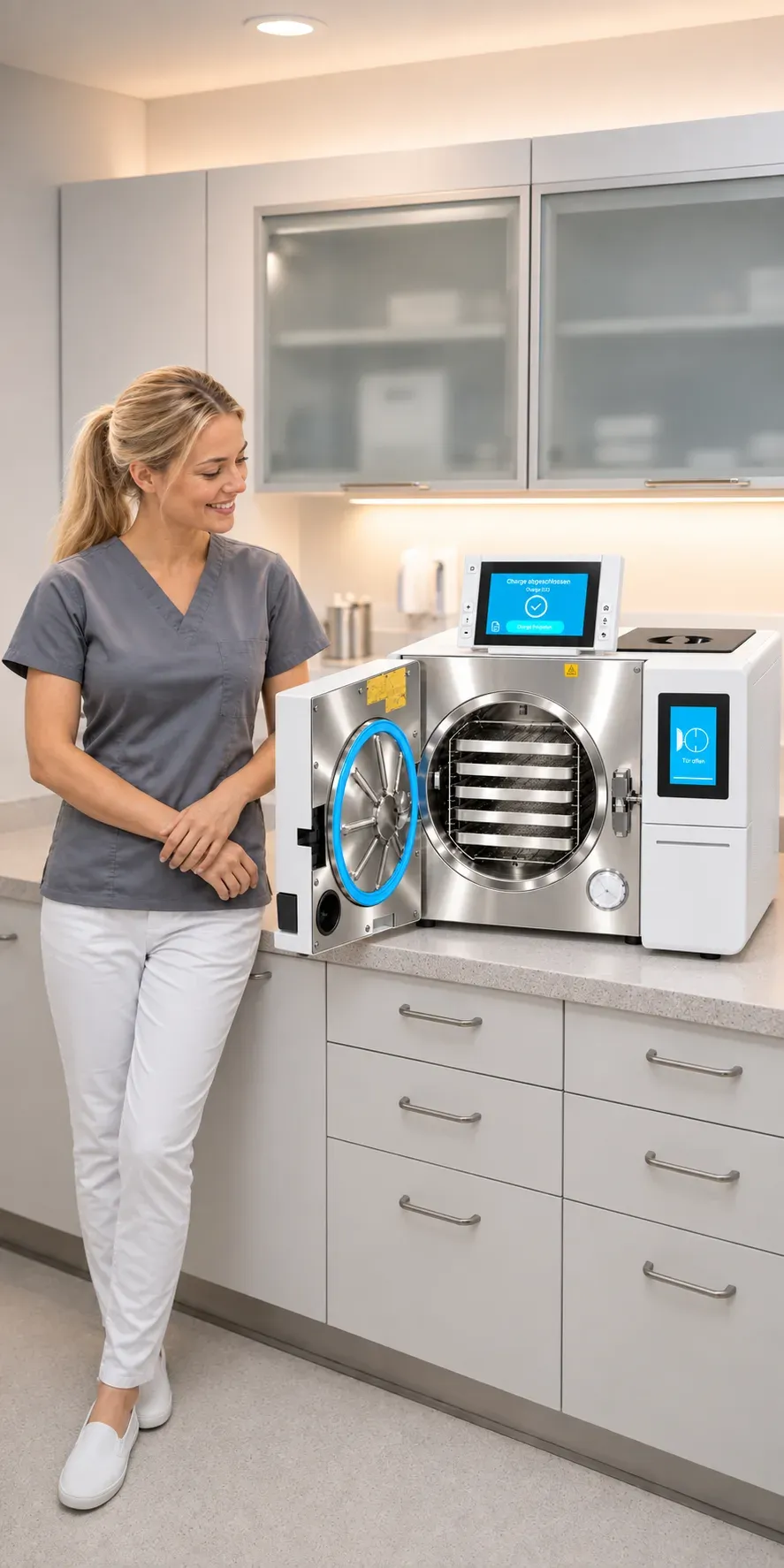

A practice assistant beside the open chamber of a class B autoclave; the terminal above reports the finished batch
  • WiFi
  • LAN
  • USB
  • Practice software
  • Label printer
  • Barcode scanner

Paperless, and two ways to do it.

Release at the practice PC, or release at the machine. The record is the same either way.

A practice PC showing hygiene management software

One, at the practice PC

  1. 1The record is written. CertoAssist logs the cycle as it runs.
  2. 2It travels by itself. CertoAssist hands the record to your practice or hygiene software: 68 programmes, among them ClavioSoft, Segosoft, diosMP, neoQM and RecoTec.
  3. 3You release it there. Check the cycle against the record, release it, print the label.
A practice assistant signing the batch release on the touchscreen of a class B autoclave

Two, at the machine

  1. 1Release where it happened. Sign the batch on the screen with CertoSign and print the label.
  2. 2The backup follows. The record is saved and passed on to the PC afterwards.

Which programmes? The full list, with a search.Practice software compatibility

Technical data

List price, excl. VAT
€20,217
Sterilisation class
Class B to EN 13060
Chamber volume
45 litres
Chamber dimensions
Ø 32 × 61 cm
Trays
3 × stainless steel, 51 × 22.6 × 1.7 cm
External dimensions (L × W × H)
84 × 64 × 56 cm
Minimum bench depth
On request
Net weight
120 kg
Water supply
5 L clean / 5 L waste, no plumbing required
Temperature range
105 – 134 °C
Programmes
7 standard programmes, all parameters adjustable
Test programmes
Vacuum test, Helix test, Bowie & Dick test
Drying
Dual drying: vacuum and jacket heating
Average cycle time
approx. 60 minutes incl. drying
Electrical supply
230 V AC, 50 Hz
Power
3500 W
Standby consumption
6 W
Interfaces
USB, Integrated thermal printer
Documentation
CertoAssist on-screen batch release with CertoSign, plus EN 13060 compliant export via USB
Certification
CE via TÜV SÜD (notified body)
Warranty
2 years, 3 years with a service contract
Model code
STE45T
Ordering options
Fixed water connection with automatic refill

CertoAssist

The terminal is included, not an accessory. No cloud account, no server in the back office, no practice data leaving the building.

The interfaces under technical data are the autoclave's own; network, barcode and label come with the terminal. For the whole practice it pairs with ClavioSoft.

Terminal specification: included

Display
7" LED backlit, 800 × 480, 16:9
Touch
Capacitive
Brightness
450 cd/m²
Processor
ARM Cortex-A8, 800 MHz – 1.0 GHz
Memory
512 MB RAM, 4 GB flash
Storage
micro SD and USB
Network
Ethernet 10/100, Bluetooth 2.1
Peripherals
Barcode scanner port, label printer
Supply
9 – 36 V DC, max. 9 W
Dimensions
220 × 132 × 36.5 mm
Weight
740 g

Other chamber sizes

Established practices

CertoClav Neo 18

The standard chamber for a practice that runs several cycles a day.

~38 min · ~36 pouchesLarger practices

CertoClav Neo 23

The deep chamber for long instruments and high throughput.

~45 min · ~46 pouches
